Horizontal or Vertical Design of Pig Trap Systems to perform either regular cleaning or inline inspection.
Design of Fuel Gas Systems to client’s specifications, to meet the desired requirements of gas, for turbines, engines, burners or compressors.
Design of Test and Measurement Separators or production Separators, either two or three phase, to measure flow of water, gas and crude oil.
Products
PIPELINE OIL & GAS EQUIPMENT can provide integrated packages meeting different specifications and conditions. Full compliance to the codes and standards specified by the engineering and fabrication requirements of the project is a “must”.
Click on one of our products to read more
- Test and Flow Measure Separators&Production Separators
- Fuel Gas Systems
- Pig Launchers&Pig Receivers
- Coalescer Filters&Basket Filters
- Flow Measure Packages
- Other packages
We are fully committed to customer satisfaction, focus and our core values and objectives.
Test and Flow Measure Separators&Production Separators

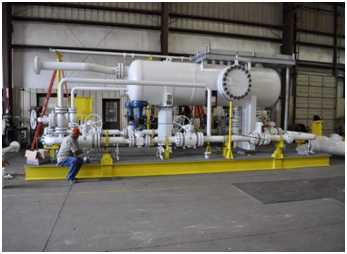

ASME Section VIII Div. 1 60” X 2” WT with 20ft T-T Separator ANSI 900 RTJ, with instruments, flow meters and control valves shipped to customer to fulfill a rent contract for 12 months to measure the flow out of three production wells.
Fuel Gas Systems
ASME Section VIII Div. 1 24” X 0.562” WT X 10 ft T-T Scrubber ANSI 600 RF, with instruments, regulators and control valves. Ship to an offshore platform in the Gulf of Mexico.
Pig Launchers&Pig Receivers

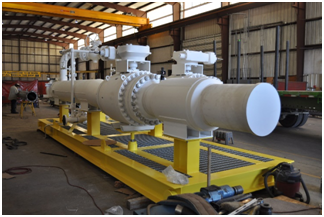

Pig Launcher and Pig Receiver 20” X 24” ANSI 600 RF Design Code B31.8 with instruments and Sectional Valves in accordance to API6D and Client’s specifications. Full compliance to NACE MR-01-75 due to flow’s high content of H2S.
Coalescer Filters&Basket Filters
ASME Section VIII Div. 1 Basket Filter 20” X 10” Inlet and Outlet ANSI 1500 RTJ material 316/316L with instruments for level monitoring and control.
Flow Measure Packages
ASME Section VIII Div. 1 48” X 1.5” WT with 20ft T-T Separator and Flow Measure ANSI 900 RTJ, with instruments, flow meters and control valves shipped to an offshore platform in the Gulf of Mexico.
Other packages.

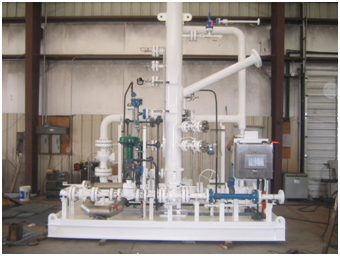

Multiphasic GLCC 12” ANSI 600 RF Separator and Flow Measure, with instruments, flow meters and control valves shipped to an offshore platform in the Gulf of Mexico.
